The Pio Transportable Home

70m²

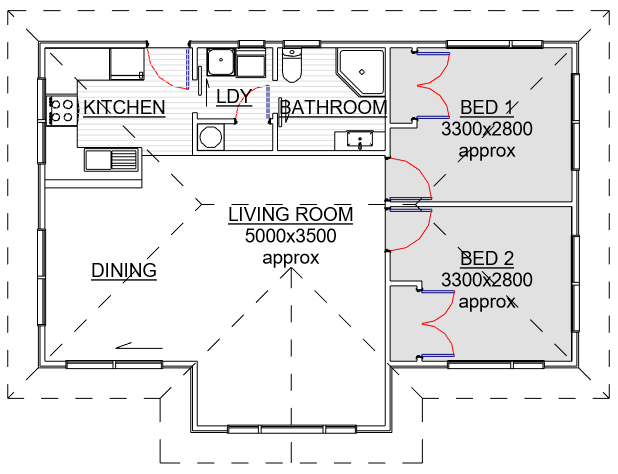

At 70 sqm the 2 bedroom Pio transportable home is an excellent option for a secondary dwelling. Well designed to incorporate an open kitchen/dining/living space as well as a separate laundry and kitchen.

This home can be pre-built off-site at our construction yard in Cambridge and then transported to your site throughout the north island. Contact us today about your requirements.

Download brochure View all our transportable home plans

Features

Documents Included

Waipa District Council Building Permit, Plans & Specs Provided Plans, Spec & Calculations Supplied for Receiving Council. Engineers Report Not Included

Exterior

Subfloor

Timber subfloor as per NZS 3604:2011 - Foundations are based on level site to NZS 3604:2011

Exterior Cladding

BGC weatherboard or Hardies axon panels

Framing

90 x 45 H1.2 Treated

Flooring

20mm Particle Board Flooring

Fascia

Pre-Primed Timber Fascia

Roofing

Long run coloursteel corrugated iron or styline profile

Windows

Tasman powder coated double glazed aluminium joinery.

Interior

Door Hardware

Windsor Futura Apex lever range

Doors

Pre-Hung Hume Primecoat MDF Flush in Slimeline Jambs & Doorstops - Grooved style optional

Linings

Elephant 10mm Plasterboard & Elephant 10mm Aquaboard

Plastering

Level 4 - Paint Finish

Cornice

75mm GIB Cover Classic

Skirting

60mm FJ Bevelled Edge & 60mm FJ Pine Architraves

Shelving

16mm White PBD / Lumberlok Closet Rails / 112x18mm FJ Pine Slats in H.W.C

Insulation

Ceilings

Earthwool R6.6

Walls

Earthwool R2.6

UnderFloor

Expol Underfloor R2.5

Bathroom

Shower

Acrylic Shower Unit - Size & Shape Dictated by Plan

Toilet

Raymore Close Coupled

Bath

FreeStanding BTW Fiberglass unit

Vanities

Ceramic topped Units, supplied & Installed - Wall Hung or Floor Mounted

Tapware

Raymore Range

Heat Unit

2kw Wall Mounted Heater

Extraction Unit

Fan/Light unit

Kitchen

Joinery

Prime Melamine or Bestwood Meltecca, Water-Resistant Carcases

Hardware

Heritage Hardware Range

Benchtops

Prime Laminate or Formica Range

Sink

Stainless Steel Pero 800

Appliances

Stove

Bosch Electric Freestanding With Ceramic Cooktop

Oven

Bosch Electric Underbench Oven

Hob

Bosch 4 Element Ceramic Cooktop

Extraction Unit

Bosch Powerpack Extractor or Rangehood

laundry

Tub

Raymor Boston 560mm

Water Heater

Electric 180L Mains Pressure Cylinder

Electrical

Fit-Out Complete Using Led Lighting. Meter Box Included

Plumbing

Completed And Tested (No Site Connections)

Request a Quote

Interested to know more about this transportable home? Contact us below to start your build today.
